BMW E46 Temp Gauge Reads Normal but Is It Overheating? Check the Real Coolant Temperature

The temperature gauge on an E46, and on many BMWs of the same era, is buffered. It's designed to sit in the middle across a wide range of normal temperatures so drivers don't worry about small changes. The downside is that by the time the needle finally moves, the engine may already be running much too hot. Cooling-system failures (water pump, expansion tank, radiator and thermostat) are common on these cars, so it pays to see the real number.

How to see the real coolant temperature

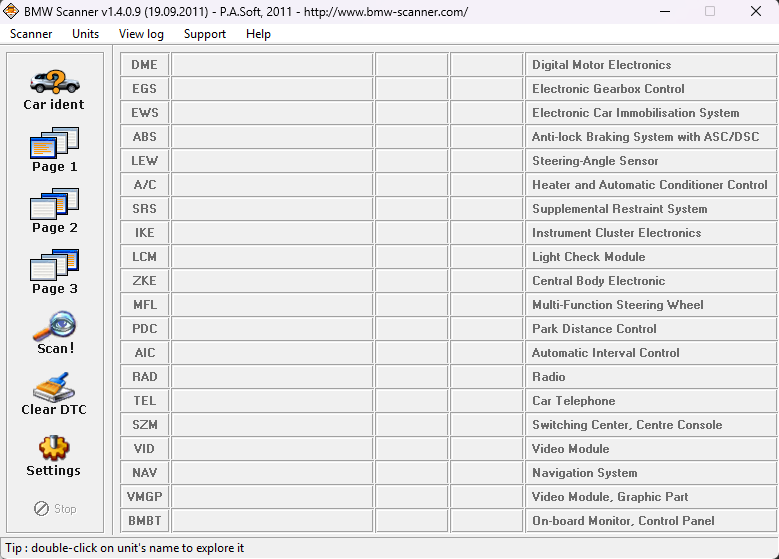

1. Connect PASOFT and switch the ignition ON. For live readings while driving, have a passenger handle the laptop.
2. Open the DME module and select Live data.
3. Find the coolant temperature value. Click + data group if you need more values on screen.
4. Start the engine and let it warm up while you watch the reading.

Live data is available on the DME MS43.0, used with the six-cylinder M54 engine in most 2001–2006 E46, E39, E53, E83 and E85 models.

What to look for

• Warms up very slowly, or never reaches normal temperature: often a thermostat stuck open.
• Climbs well above normal in traffic but drops at speed: check the electric fan, the fan clutch (if fitted) and the radiator.
• Climbs steadily with the gauge still centered: stop and check the coolant level and look for leaks.
• Readings jump around or look impossible: the temperature sensor or its wiring may be at fault.

These engines use an electronically controlled thermostat, so the normal running temperature can change with load. Watch how the value behaves over a few drives. A steady pattern you get to know is more useful than any single number.

Other useful live data

The same screen shows other DME values that help with common problems, such as rough idle or poor fuel economy. Save a log while the car is running well so you have something to compare against later.
